TSA - Terminal Strip
Adapter
The TSA is a terminal strip
adapter used to make easy connection to Team Digital

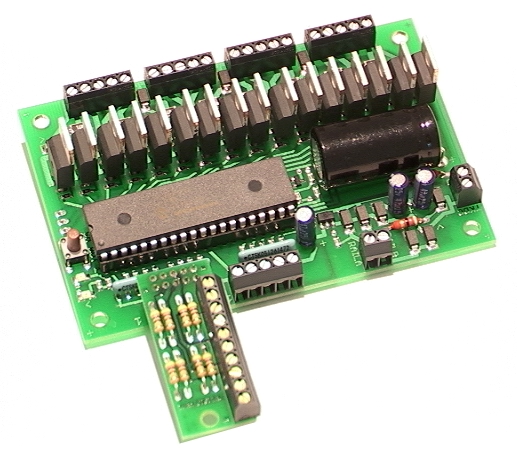

products. It plugs directly into the the connectors on
several of our products. This eliminates the need for
ribbon cable and additional connections. The TSA package
includes 2 terminal strip adapter boards.
Package MSRP - 15.95 USD, includes two TSA boards
Manual in PDF format
Color
Application
Pictures
Operation:

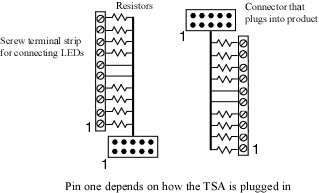

The TSA has 10 screw terminals to connect wires to
individual LEDS or signals. Each of these 10 screw
terminals is connected to one of the 10 pins in the
product connector. Each adapter can handle eight inputs
or outputs and 5 volts and ground with a screw terminal.
There are eight build in resistors to limit LED current.
Resistors are required with LEDs to limit the amount of
current flowing thought the LED. Even though the TSA has
build in resistors it can also be used for connecting to
inputs.
