SRC16 wiring for MotoD and push buttons

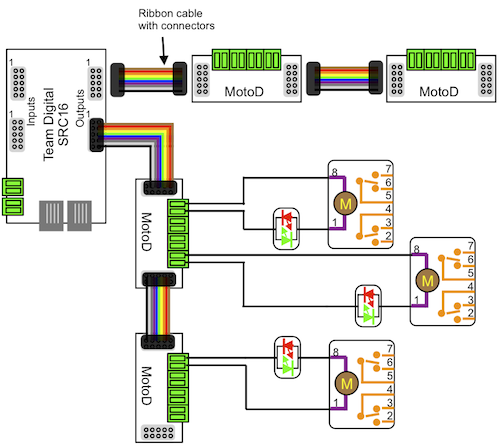

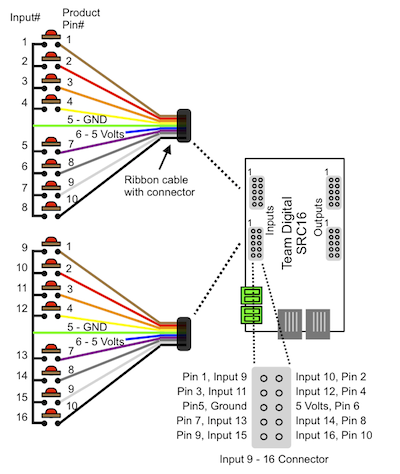

The diagrams below illustrate how to connect push buttons to the inputs of the SRC16 and how to connect MotoDs to the SRC16 outputs to drive Tortoise™ switch machines. Optional LEDs are shown wired in series with the Tortoise™ to indicate turnout position. Only three Tortoise™ are shown but up to 16 could be used. Team Digital Cable Connector Kit (CCK) can be used for the ribbon cable and connectors.
